Skeleton

The camera is animated using these character curves:
  • Camera_Pitch
  • Camera_Yaw
  • Camera_Roll

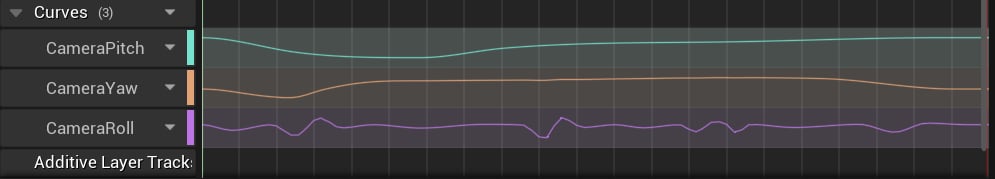

Example of camera animation curves.

These curves are added to the character animations, so whenever a Montage is played in runtime - it animates the character and camera at the same time. Then, the Camera Animator component extracts these curves from the character animation blueprint and rotates the camera in runtime.

​
Meshes and Animations

You can find camera animations in the Camera folder of each weapon. While these sequences are not used directly in the game, they were used via the extraction tool, that transferred camera curves to the character animation:

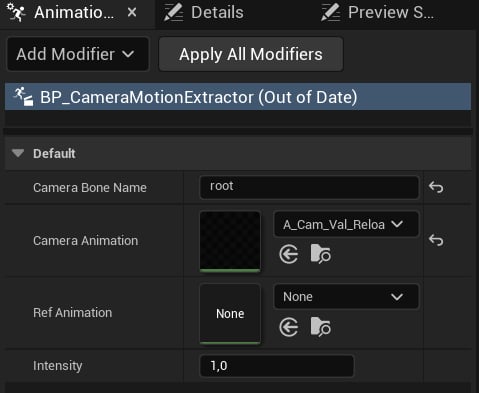

Camera Motion Extractor.

Tip: you can use this modifier to re-extract or change the intensity of camera animations.

​
Camera Animator

This Actor Component applies animations to the camera:

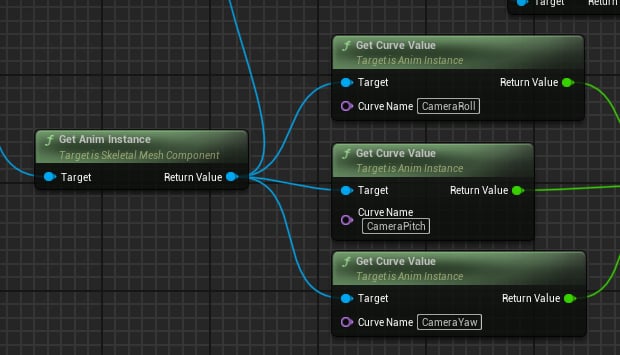

Extract character curves, rotate the camera.

Tip: this component is also responsible for camera recoil shakes.
