Animator Controllers

Similar to the character, guns also use Animator to drive parts like magazine, bolt, trigger, etc.:

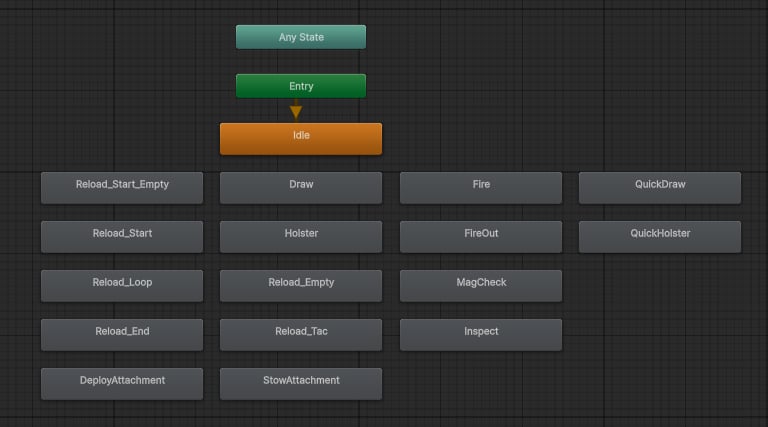

AC_TacFPS_Weapon controller.

This animator consists of a single layer that has all the weapon-specific actions. These states are activated in the weapon script, and they are played together with character animations, so evreything is synced perfectly.

​
Override Controllers

AC_TacFPS_Weapon is a generic controller, meaning it’s never used directly, but instead it serves as a basis for Override Controllers:

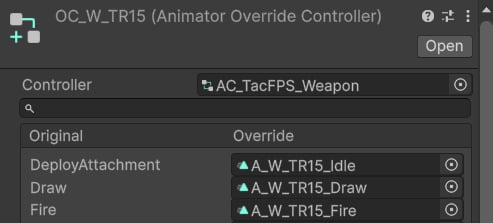

TR15 override controllers.

TR15 and Herrington 11-87 are the weapons that use this kind of setup.

​
WK-11 Viper

This weapon uses its own controller AC_W_WK-11_Viper:

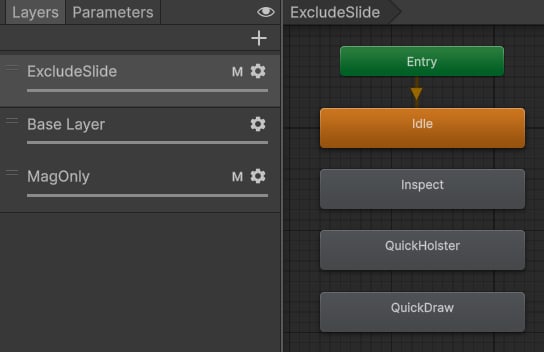

AC_W_WK-11_Viper controller.

This Animator consists of 3 layers for the purpose of preserving the bolt-slide when out of ammo.
  • ExcludeSlide: This layer is used for animations that don’t affect the bolt-slide directly.
  • Base Layer: This layer animated all weapon parts.
  • Mag Only: This layer is only used for mag checks.

​
Oryx SRM-12

Similar to WK-11 Viper, this weapon also has its own controller AC_W_Oryx_SRM-12:

Oryx SRM Animator.

This Animator consists of 2 main layers:
  • Base Layer: It’s used for all actions aside from deploying/stowing bipods.
  • Bipod: It’s used to animate bipods only.
The reason for such separation is to preserve the pose of bipods when doing other actions (e.g., reloading or inspecting).
