Overview

The FPS Animation Framework introduces a standalone input property system. The idea is that you can define custom properties in the Input Config asset and then use them in runtime:

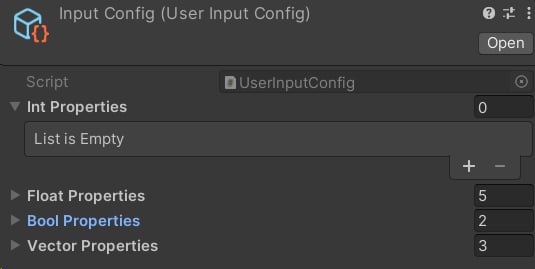

Example input config asset.

Once the game starts, the User Input Controller will register all the properties from the Input Config, so they can be modified in runtime. So far only 4 types are supported:
  • Int
  • Float
  • Bool
  • Vector4
Tip: floats have an interpolation feature. Set the interpolation speed to something higher than 0, and the system will automatically interpolate the value in realtime. This is a useful function for weights, when you want to smoothly disable/enable some animation features.
The framework provides a default Input Config, which you can use as a starting point:

Default asset.

To get or set values in runtime, you can use these methods: While it is possible to get/set a property by name, it is recommended to use the property index instead. You can get the property index in the Start() event like this: Now let’s learn what parameters control what in the default Input Config.

​
Default Properties

​
Float properties

  • PlayablesWeight - controls the weight of the custom animations.
  • StabilizationWeight - controls the stability of the upper body. If set to 1 - fully stabilized, if 0 - overidden locally, stability is not guaranteed.
  • LeanInput - defines the lean angle. Used in the Look Layer.
  • Aiming Weight - controls the weight of the ADS. It is modified in the Ads Layer, and used in the View Layer.
  • TurnOffset - controls the character rotation offset to counter player rotation (it is used sed for turning in place).

​
Bool properties

  • IsAiming - defines the current state of aiming.
  • UseFreeAim - whether we use the dead-zone mechanic or not. Only used in the Sway Layer.-

​
Vector4 properties

  • MouseInput - defines accumulative mouse look input. X is the yaw rotation, while Y is the pitch rotation. Z and W components are not used. Primarily used by the Look Layer.
  • MouseDeltaInput - defines the delta mouse look input. X is the yaw delta rotation, while Y is the pitch delta rotation. Only used by the Sway Layer.
  • MoveInput - defines the current movement input. X represents the horizontal movement, and Y - is horizontal. Used by the Sway Layer.
