IK Motion Layer

​

Description

1. Add IK Motion Layer to the Animator Profile.
2. Create IK Motion Layers manually using the right-click method above.
3. Dynamically link desired IK Motion Layer using the FPS Animator component.

private FPSAnimator _fpsAnimator;

private void DoSomething()
{
    ...
    // Where `layerSettings` is your IK Motion Layer.
    _fpsAnimator.LinkAnimatorLayer(layerSettings);
    ...
}

​

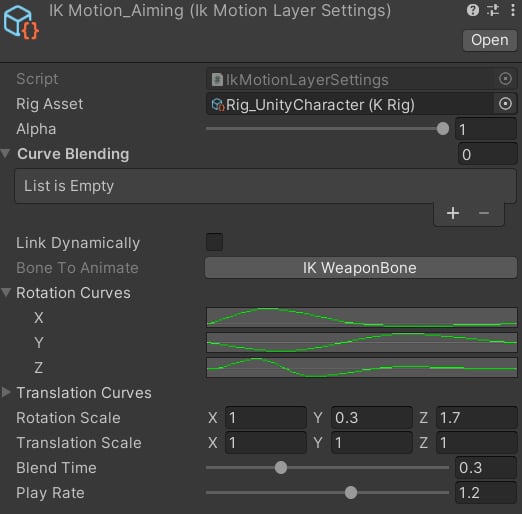

Properties

• Bone To Animate: character bone which will be animated procedurally.
• Rotation/Translation Curves: curves which will animate each axis of rotation/translation.
• Rotation/Translation Scale: will scale each axis of rotation/translation.
• Blend Time: time in seconds to blend in this motion.
• Play Rate: playback speed for this animation.
