Simple look around and leaning.

​
Description

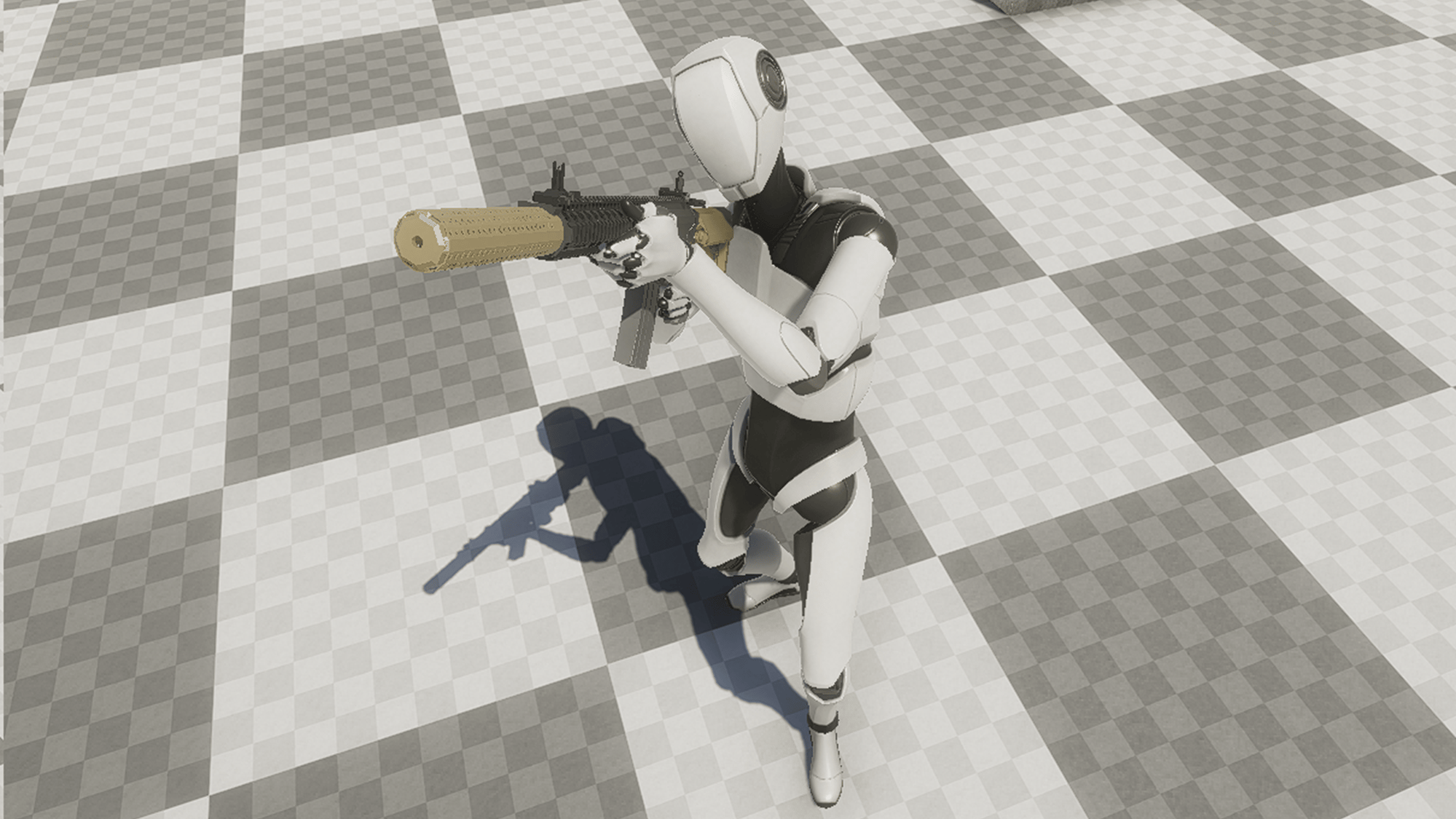

Look Layer replaces Blend Trees when it comes to looking around. It procedurally rotates bones of your character to make it look around. The layer supports all rotation axes.

​

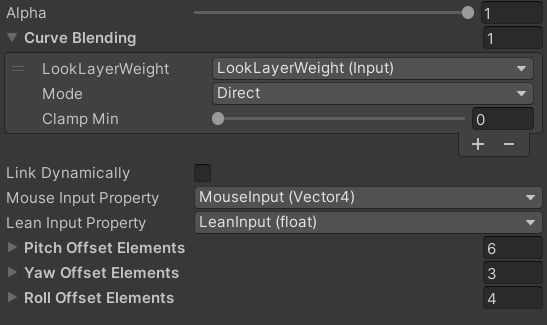

Properties

  • Mouse Input Property: what input Vector4 value will be controlling the Pitch and Yaw input.
  • Lean Input Property: what value will be controlling leaning angle.
  • Pitch/Yaw/Roll Offset Elements: what bones will be applying Pitch/Yaw/Roll rotations.
Pitch represents rotation around the X axis or up/down motion. Yaw represents rotation around the Y axis or right/left motion. Roll represents rotation around the Z axis or leaning motion.
