Overview

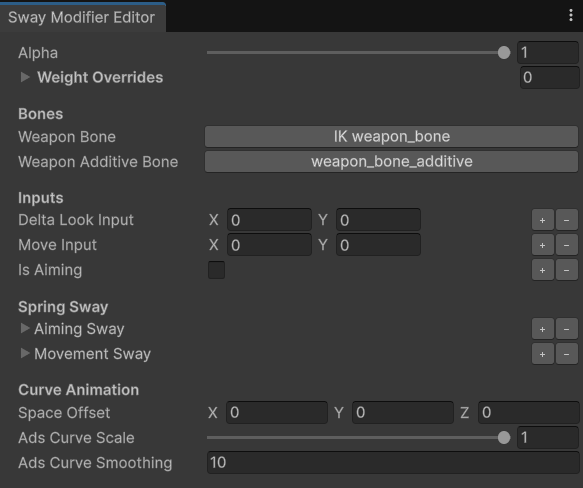

Sway Modifier is used to dynamic weapon translation and angular offset when aiming and moving.

​
Bones

  • Weapon Bone is the bone that will be animated.
  • Weapon Additive Bone is an option bone that contains additive motion. This can be useful if you want to apply movement animations

​
Inputs

  • Delta Look Input is the delta look input of the player.
  • Move Input is the movement direction input property.
  • Is Aiming adjusts values if player is aiming.

​
Spring Sway

  • Movement/Aiming Sway
    • Position/Rotation
      • Damping: Oscillation suppression factor in range [0;1].
      • Stiffness: Oscillation factor in range [0;1].
      • Speed: Interpolation speed.
      • Scale: Final value multiplier.
    • Damping Factor: How fast sway will interpolate to zero.
    • Space: The space sway will be applied in.

​
Curve Animation

  • Space Offset transfroms the additive animation from a custom space.
  • Ads Curve Scale controls the influence of additive animations when aiming.
    • Ads Curve Smoothing is interpolation

​
Use-cases

While the most common application is the weapon sway effect, this modifier can also be used to animate other parts of the body.
Tip: For example, it can be used to animate hands or even a character’s spine when moving around.
When it comes to adjusting the values, here are the general recommendations:
  1. Damping factor should be around ~0.4-0.5 — this has proved to be more natural in practice.
  2. Stiffness should be a bit higher than Damping, around ~0.6-0.7 — this will add that spring or jiggle effect to the sway.
  3. Speed depends on how fast the effect should happen. Setting different values for position and rotation might add variety to the motion and make it feel less “procedural”.
  4. Space should be set to “Component” most of the time. “Bone” might be useful if you want to take the bone’s rotation into account.
