Overview
Pivot Modifier applies spine rotation and pelvis translation when starting or stopping moving. It also adds leaning rotation towards the velocity.

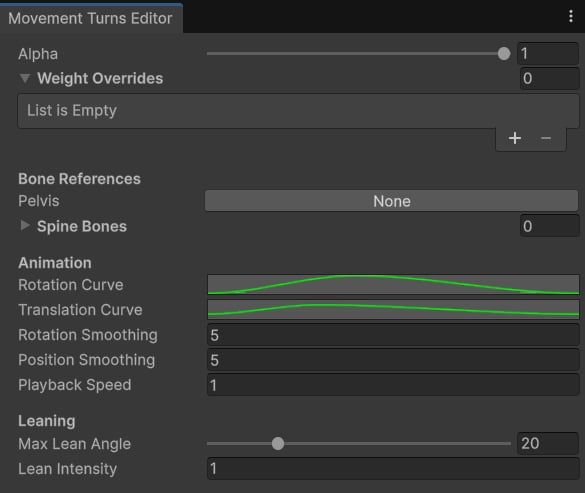

Bone References
These properties define what bones will be affected by this modifier.
- Pelvis — pelvis or hip bone.
- Spine Bones — bone chain that will be affected by the leaning rotation.
Animation
These properties define the leaning motion.
- Rotation Curve — animation for spine bones.
- Translation Curve — animation for pelvis.
- Rotation and Position Smoothing — control the interpolation speed for rotation/translation.
- Playback Speed — animation speed multiplier.
Leaning
These properties control the leaning rotation.
- Max Lean Angle — max rotation angle in degrees.
- Lean Intensity — controls how strong the leaning rotation will be.
